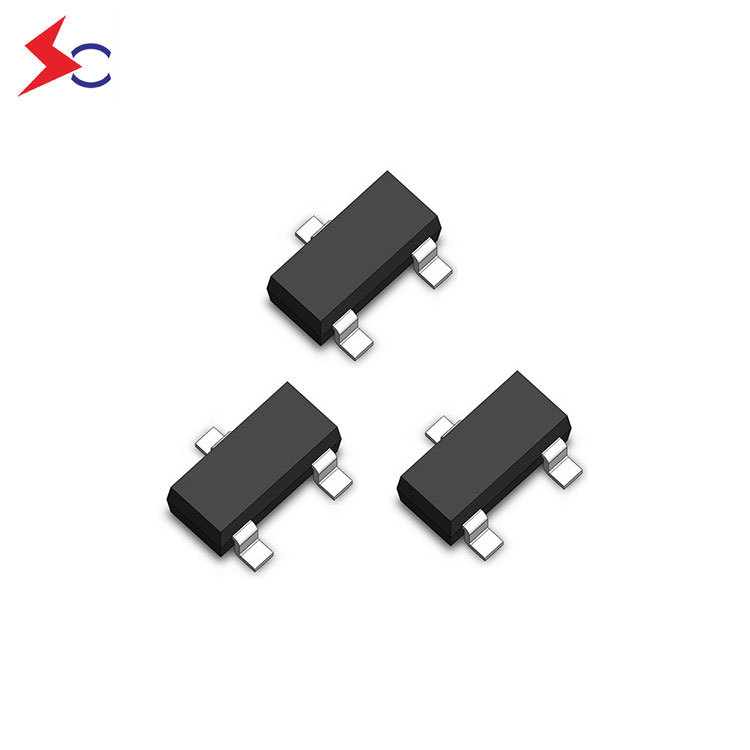

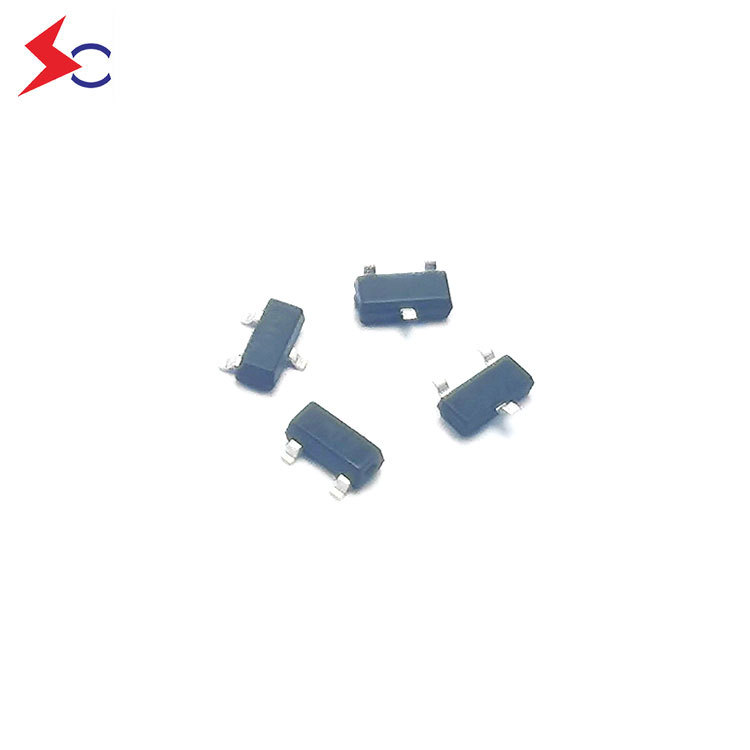

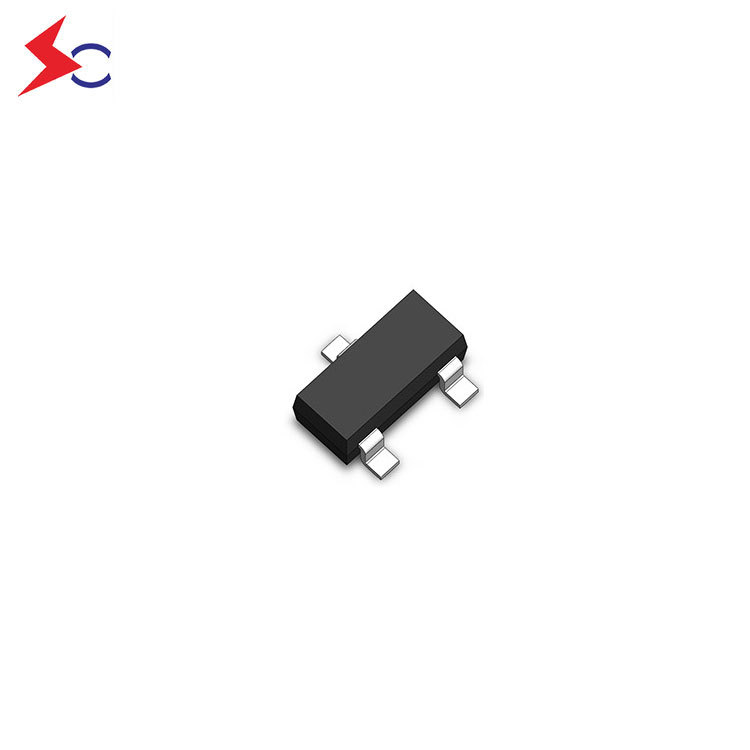

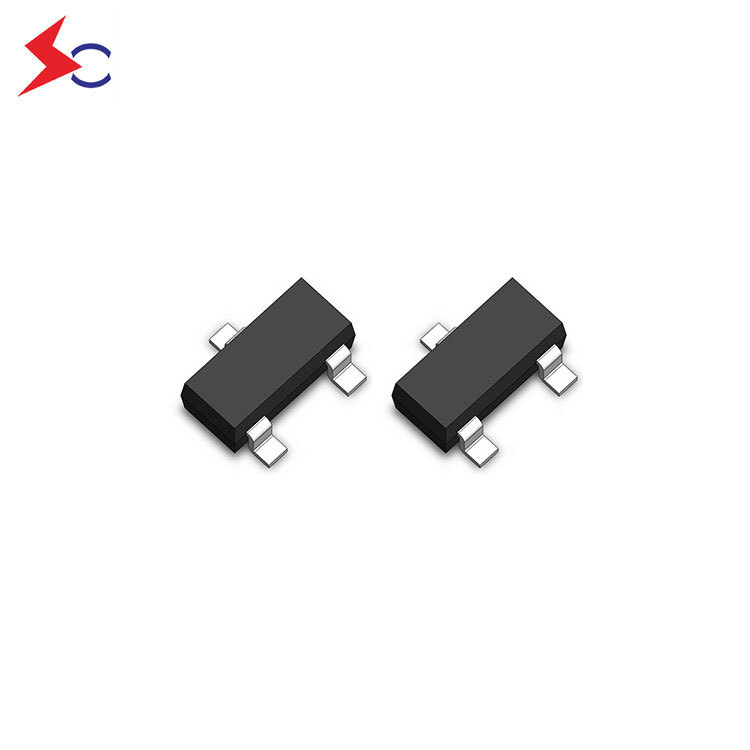

SOCAY SOT-23 Package SM712 Transient Voltage Suppressors For ESD Protection To RS485
SKU: SM712
(0)
0 Sold
$0.04
$0.05
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SM712
Pins 1 to 3 and 2 to 3 (12V TVS)：
Peak Reverse Working Voltage —Vrwm(V)：12.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：13.3
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc Typ(V)：30.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc Max(V)：35.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：75.0
Junction Capacitance @ VR=Vrwm,f=1MHz—CJ(pF)：45.0
Pins 3 to 1 and 3 to 2(7V TVS)：
Peak Reverse Working Voltage —Vrwm(V)：7.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：7.5
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=17A , tp=8/20μs Vc Typ(V)：18.0
Clamping Voltage @ Ipp—Ipp=17A , tp=8/20μs Vc Max(V)：22.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：75.0
Junction Capacitance @ VR=Vrwm,f=1MHz—CJ(pF)：45.0
Part Number：SM712
Pins 1 to 3 and 2 to 3 (12V TVS)：
Peak Reverse Working Voltage —Vrwm(V)：12.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：13.3
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc Typ(V)：30.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc Max(V)：35.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：75.0
Junction Capacitance @ VR=Vrwm,f=1MHz—CJ(pF)：45.0
Pins 3 to 1 and 3 to 2(7V TVS)：
Peak Reverse Working Voltage —Vrwm(V)：7.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：7.5
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=17A , tp=8/20μs Vc Typ(V)：18.0
Clamping Voltage @ Ipp—Ipp=17A , tp=8/20μs Vc Max(V)：22.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：75.0
Junction Capacitance @ VR=Vrwm,f=1MHz—CJ(pF)：45.0
