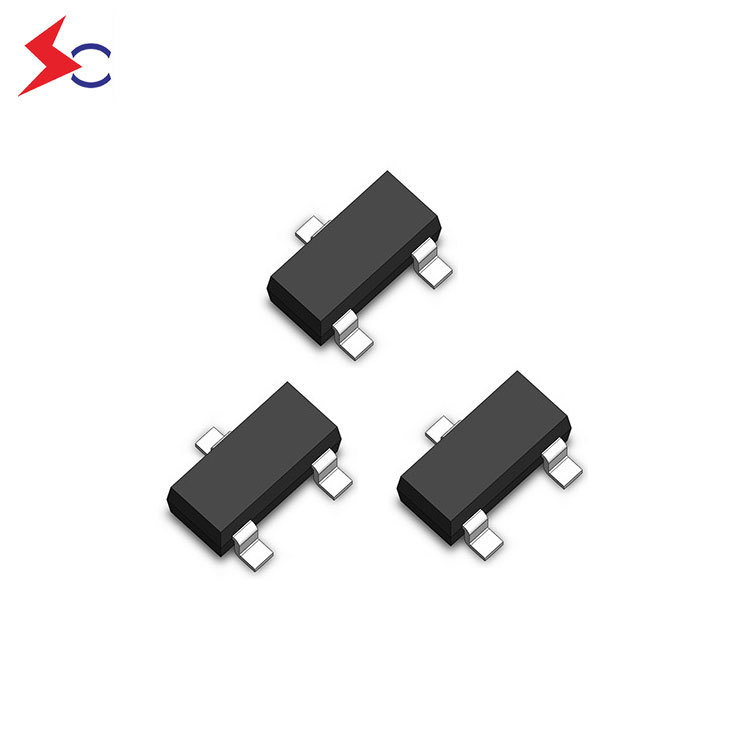

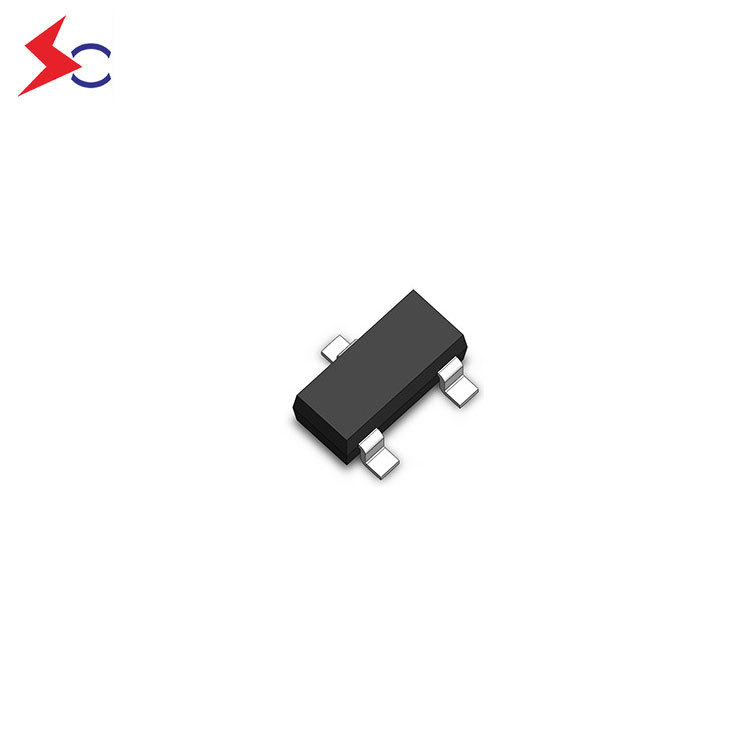

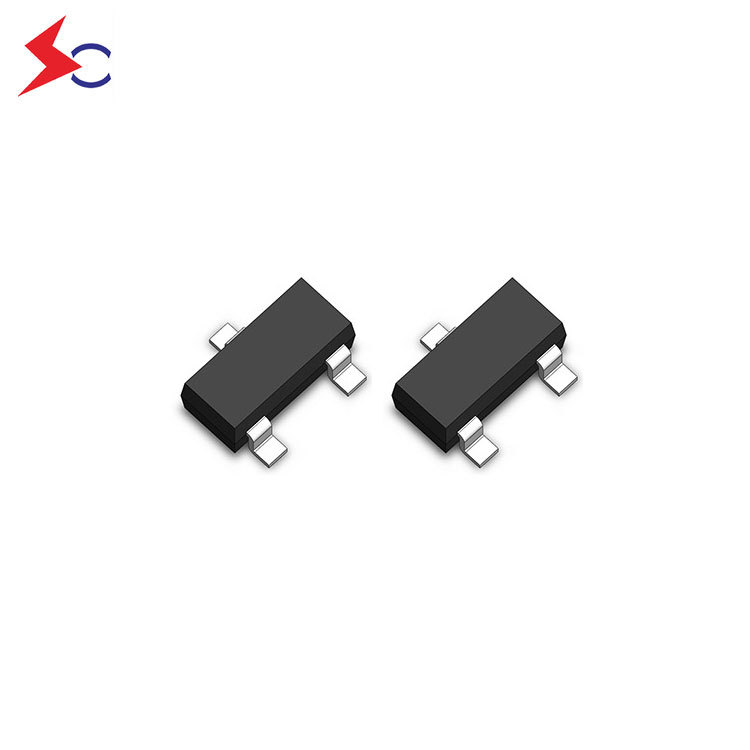

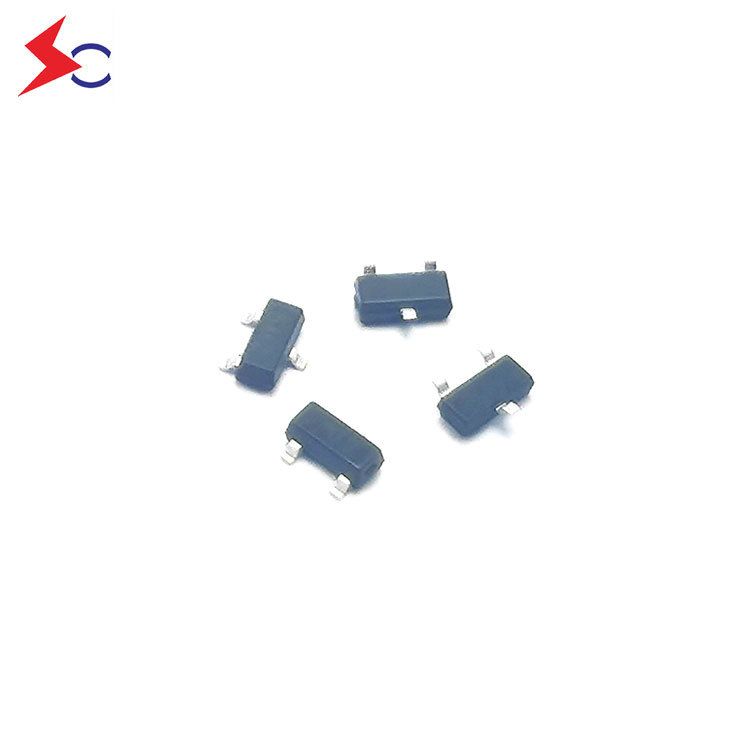

SOCAY SOT-23 Package 12V SE12T2V12GR Transient Voltage Suppressors For ESD Protection
SKU: SE12T2V12GR
(0)
0 Sold
$0.03
$0.04
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE12T2V12GR
Peak Reverse Working Voltage—Vrwm(V)：12.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：13.3
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：19.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc (V)：30.0
Junction Capacitance @ Pin 1 to 2，VR=0V,f=1MHz—CJ(pF)：30.0
Junction Capacitance @ Pin 1 to 3 and Pin 2 to 3，VR=0V,f=1MHz—CJ(pF)：50.0
Part Number：SE12T2V12GR
Peak Reverse Working Voltage—Vrwm(V)：12.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：13.3
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：19.0
Clamping Voltage @ Ipp—Ipp=12A , tp=8/20μs Vc (V)：30.0
Junction Capacitance @ Pin 1 to 2，VR=0V,f=1MHz—CJ(pF)：30.0
Junction Capacitance @ Pin 1 to 3 and Pin 2 to 3，VR=0V,f=1MHz—CJ(pF)：50.0
