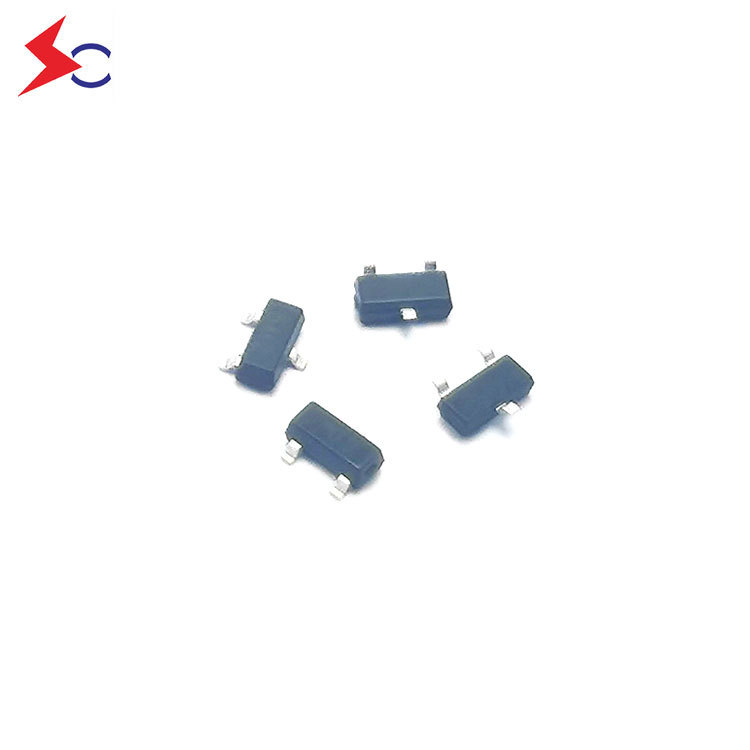

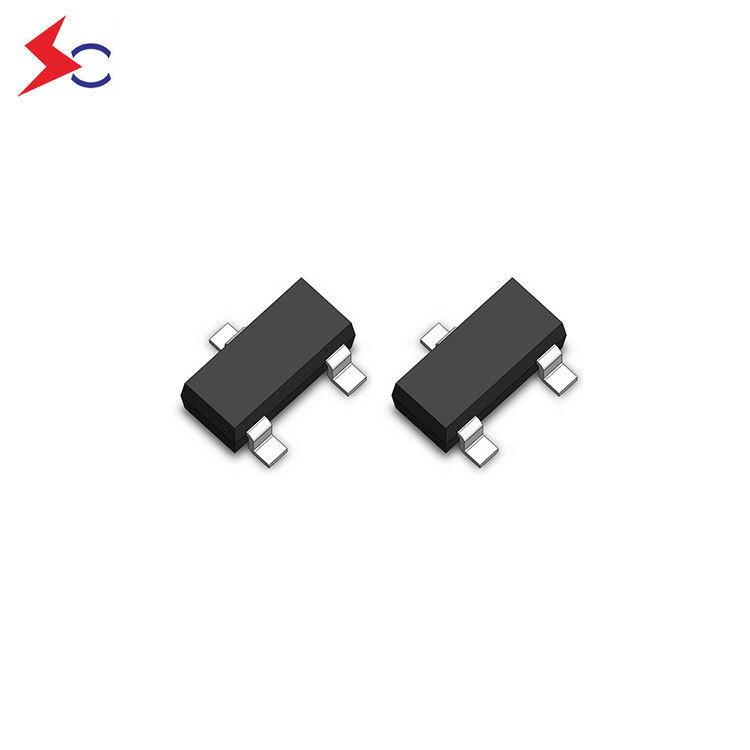

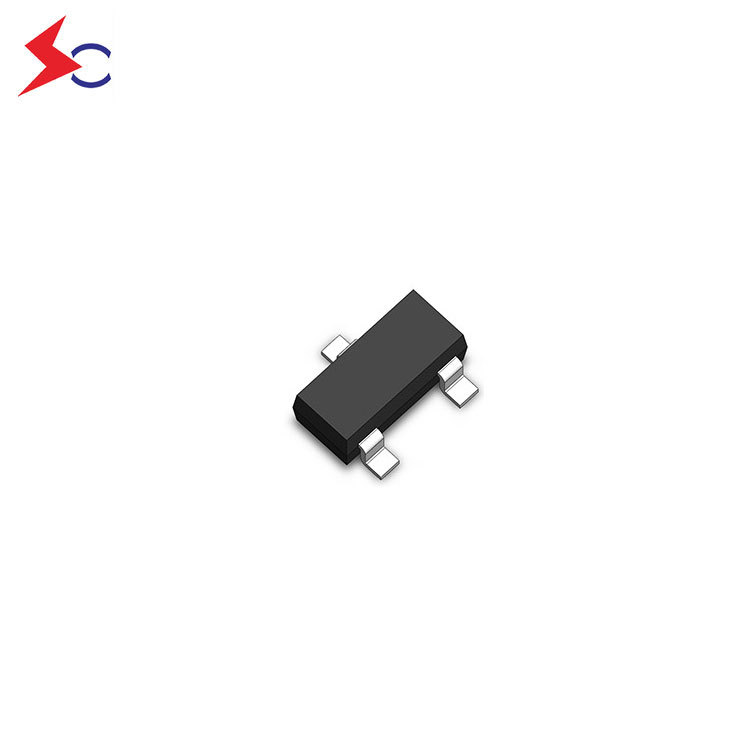

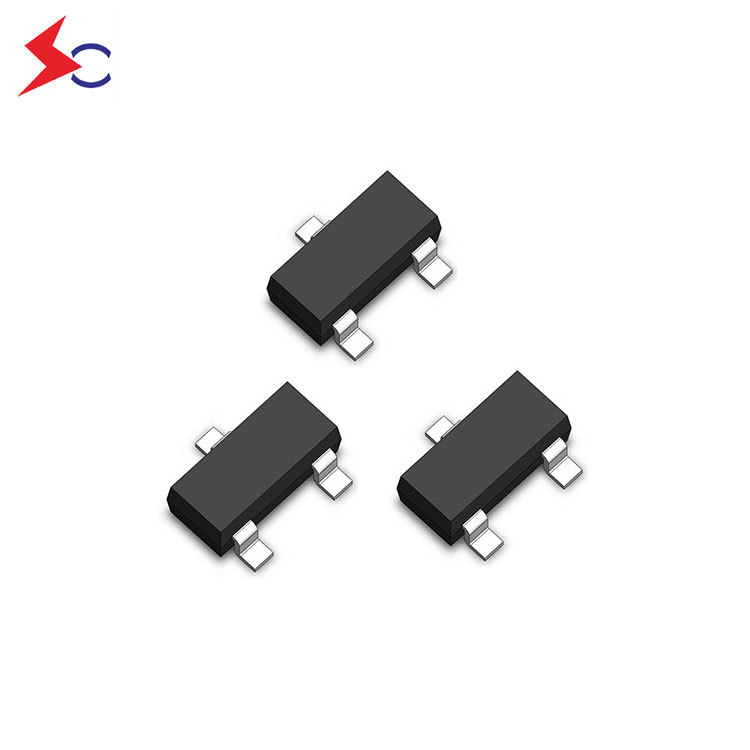

SOCAY Professional Manufacturer SOT-23 Package 5.0V SE05T2C12GZ ESD Protection Transient Voltage Suppressors
SKU: SE05T2C12GZ
(0)
0 Sold
$0.03
$0.04
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05T2C12GZ
Peak Reverse Working Voltage—Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：1.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.5
Breakdown Voltage @ IT—IT=1mA VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=4A , tp=8/20μs Vc (V)：15.0
Junction Capacitance —CJ(pF)：0.7
Part Number：SE05T2C12GZ
Peak Reverse Working Voltage—Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：1.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.5
Breakdown Voltage @ IT—IT=1mA VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=4A , tp=8/20μs Vc (V)：15.0
Junction Capacitance —CJ(pF)：0.7
