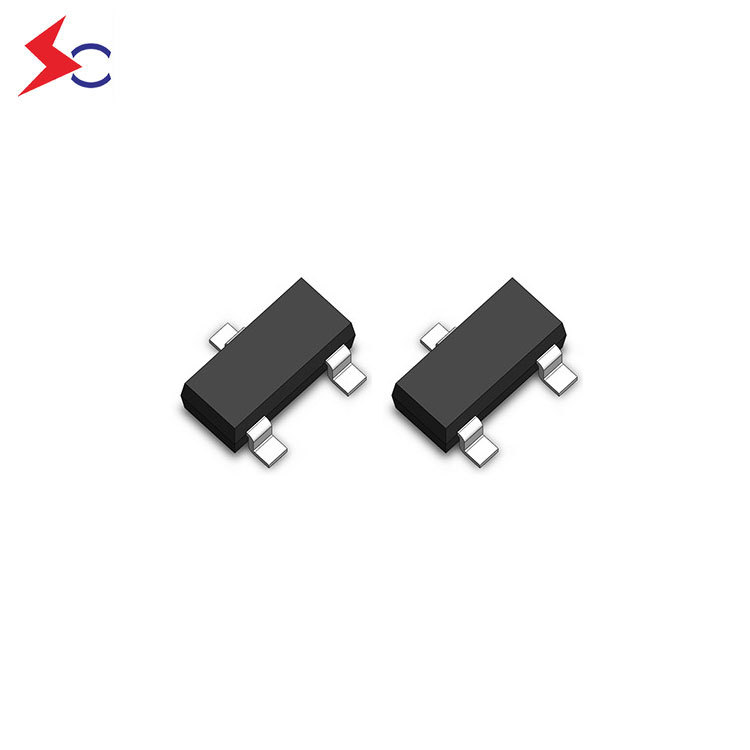

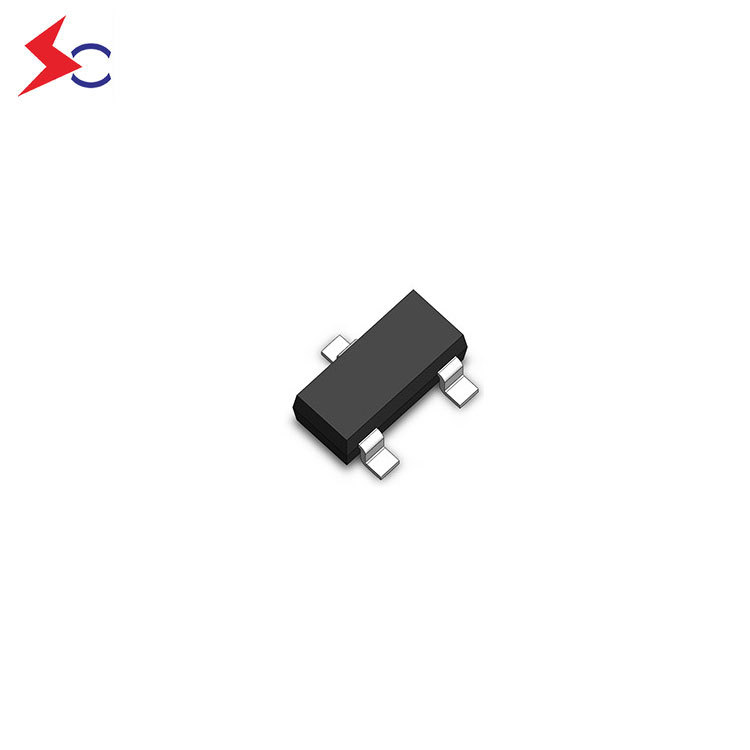

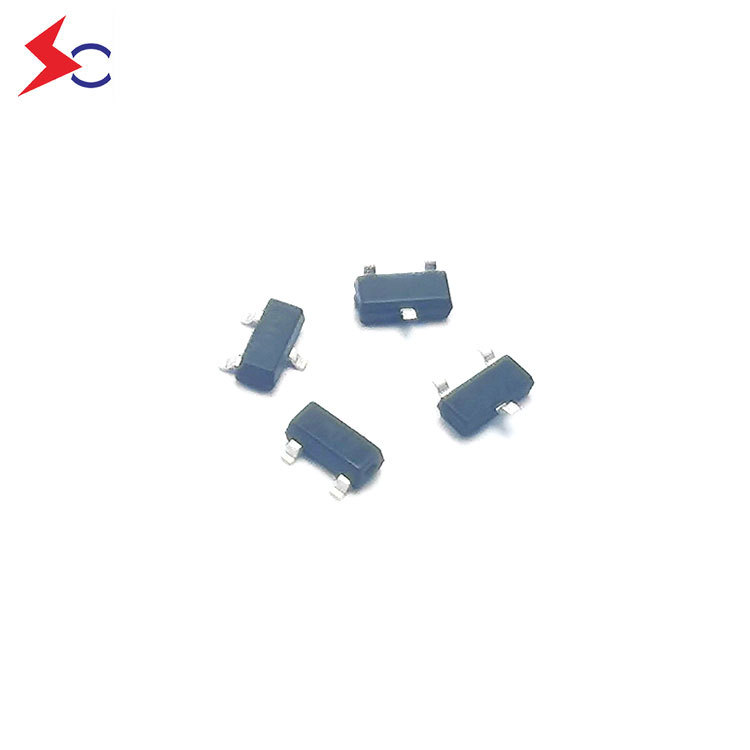

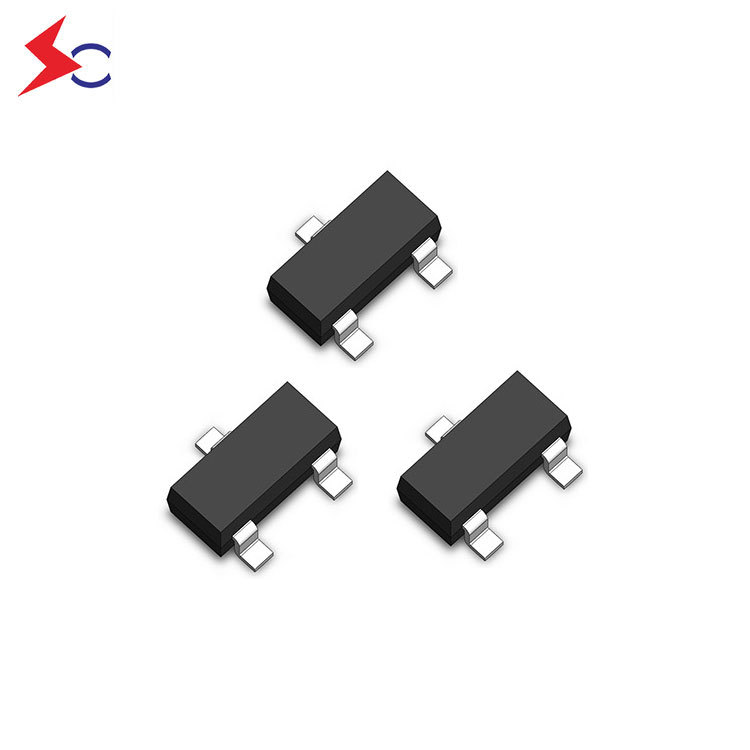

SOCAY Integrated Circuits Protection TVS Diodes SOT-23 Package SE05T2V02HY ESD Protection Transient Voltage Suppressors
SKU: SE05T2V02HY
(0)
0 Sold
$0.03
$0.04
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05T2V02HY
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：5.5
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.0
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：7.0
Clamping Voltage @ Ipp—Ipp=20A , tp=8/20μs Vc (V)：10.0
Junction Capacitance —CJ(pF)：55.0
Part Number：SE05T2V02HY
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：5.5
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.0
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：7.0
Clamping Voltage @ Ipp—Ipp=20A , tp=8/20μs Vc (V)：10.0
Junction Capacitance —CJ(pF)：55.0
