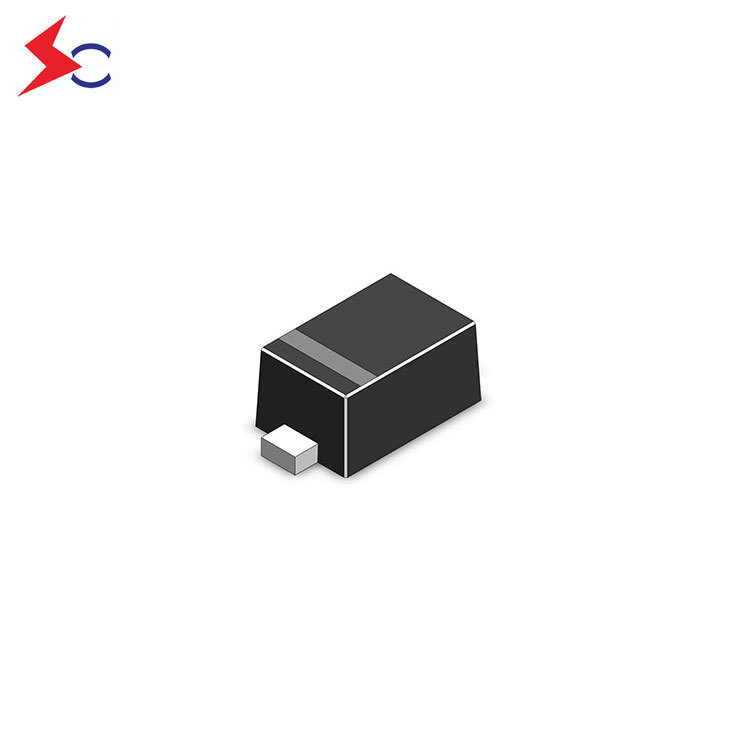

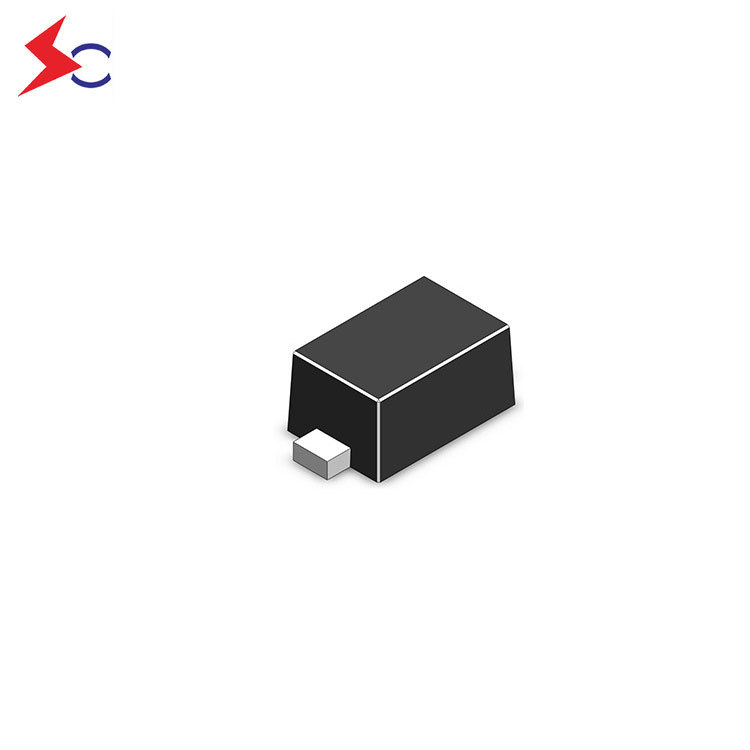

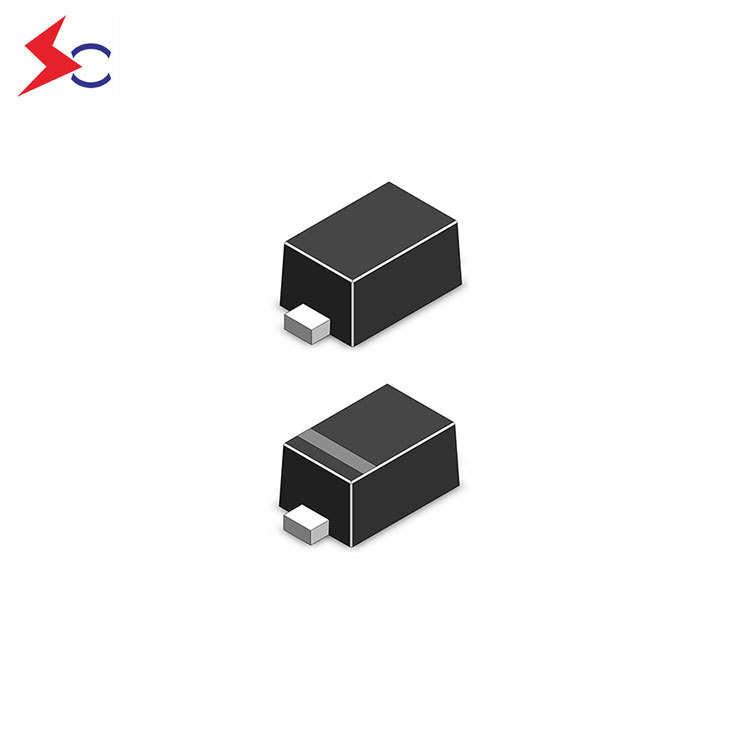

SOCAY Uni-directional TVS Diodes 0603 Package 5V SE05D5V11GY Transient Voltage Suppressors For ESD Protection
SKU: SE05D5V11GY
(0)
0 Sold
$0.01
$0.02
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05D5V11GY
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：6.0
Reverse Leakage Current —IR Max(μA)：0.1
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：8.0
Clamping Voltage @ Ipp—Ipp=10A , tp=8/20μs Vc (V)：11.0
Junction Capacitance —CJ(pF)：70.0
Part Number：SE05D5V11GY
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：6.0
Reverse Leakage Current —IR Max(μA)：0.1
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc (V)：8.0
Clamping Voltage @ Ipp—Ipp=10A , tp=8/20μs Vc (V)：11.0
Junction Capacitance —CJ(pF)：70.0
