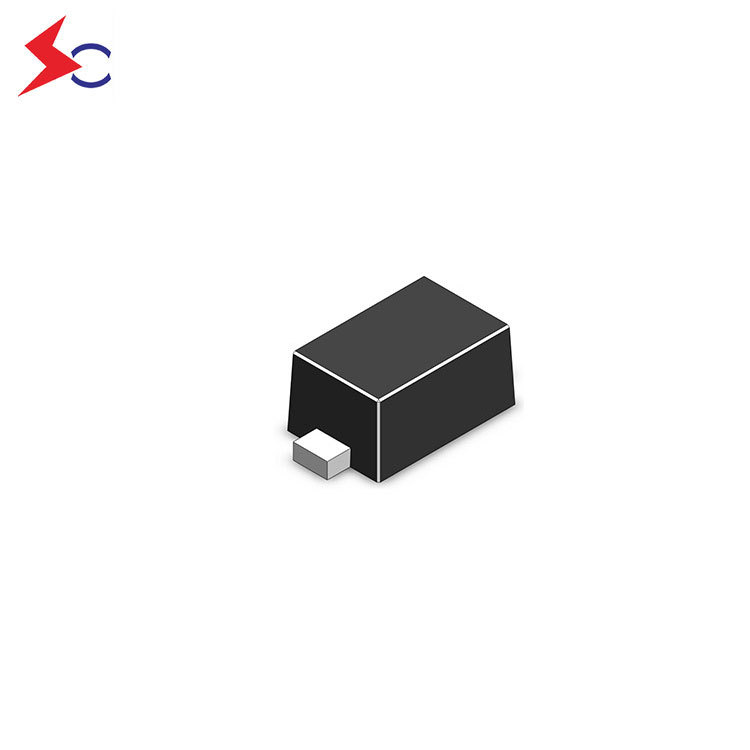

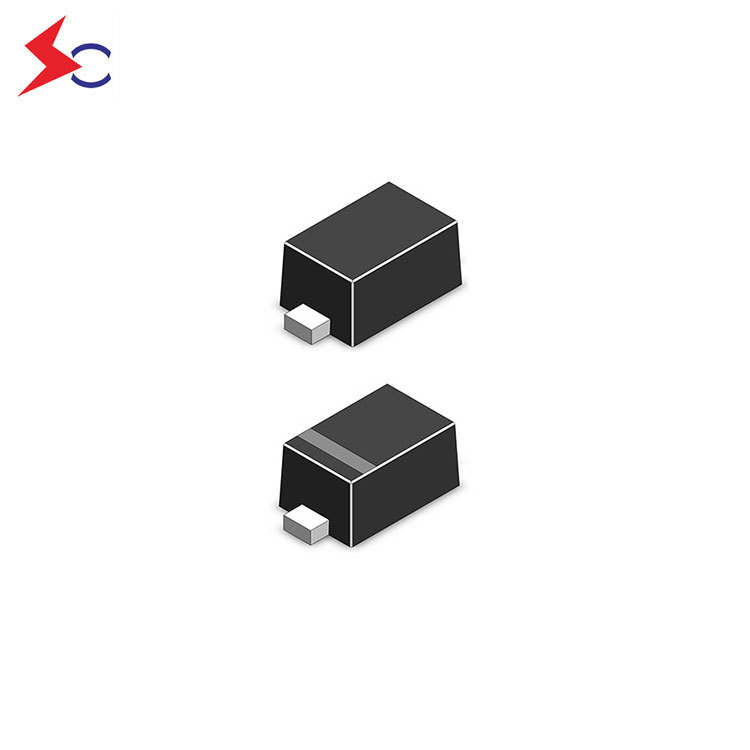

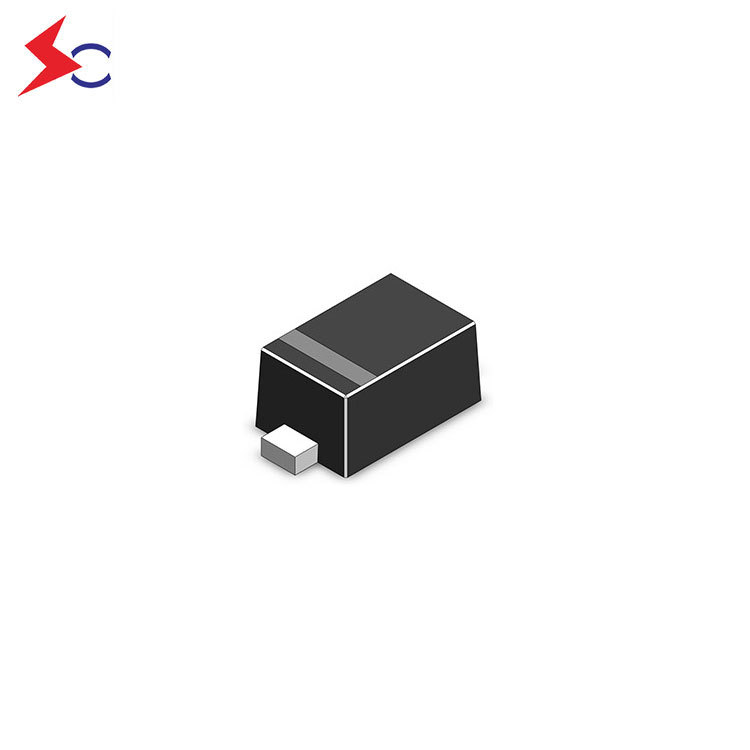

SOCAY Electronic Component SOD-523 Package 5V SE05D5S01HW Transient Voltage Suppressors TVS Diodes For ESD Protection
SKU: SE05D5S01HW
(0)
0 Sold
$0.02
$0.03
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05D5S01HW
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：5.7
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.2
Breakdown Voltage @ IT—IT=1mA VBR Max(V)：9.0
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=±4A , tp=8/20μs Vc (V)：15.0
Junction Capacitance —CJ Typ(pF)：7.0
Junction Capacitance —CJ Max(pF)：12.0
Part Number：SE05D5S01HW
Peak Reverse Working Voltage—Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA VBR Min(V)：5.7
Breakdown Voltage @ IT—IT=1mA VBR Typ(V)：7.2
Breakdown Voltage @ IT—IT=1mA VBR Max(V)：9.0
Reverse Leakage Current —IR Max(μA)：1.0
Clamping Voltage @ Ipp—Ipp=±4A , tp=8/20μs Vc (V)：15.0
Junction Capacitance —CJ Typ(pF)：7.0
Junction Capacitance —CJ Max(pF)：12.0
