SOCAY Ultra-Low Capacitance SOT23-6L Package SE05T6D14GA Transient Voltage Suppressors Array For ESD Protection

Part Number:
SE05T6D14GA




Product Details：
Place of Origin：Shenzhen,Guangdong,China
Brand Name：SOCAY
Model Number：SE05T6D14GA
Certification：REACH,ROHS,ISO


Payment & Shipping Terms：
Minimum Order Quantity：3000PCS
Price：Negotiable
Packaging Details：Tape and Reel


Description：
The SEO5T6D14GA is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces.With typical capacitance of 0.5pF only, is designed to protect parasitic-sensitive systems against over-voltage and over current transient events. The combined features of low capacitance, small size and high ESD robustness make it ideal for high-speed data ports and high-frequency lines (e.g.,HDMI &DVI)applications.The low clamping voltage guarantees a minimum stress on the protedted IC.


Features：
Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±30kV (Air)
±30kV(Contact)
IEC 61000-4-4 (EFT) 40A (5/50 ns)
Cable Discharge Event(CDE)
Smal package(2.9mm x2.8mm x1.4mm)
Protects four data lines
Low capacitance: 0.5pF Typical (I/O-GND)
Low leakage current: 0.1μA @ VRwm (Typical)
Low clamping voltage
Each I/O pin can withstand over 1000 ESD strikes for
±8kV contact discharge
Green Part
RoHS Compliant


Applications：
Serial ATA
PCI Express
Desktops.Servers and Notebooks
MDDI Ports
USB 2.0/3.0 Power and Data Line Protection
Display Ports
High Definition Multi-Media Interface (HDMI)
Digital Visual Interfaces(DVI)


Mechanical Characteristics

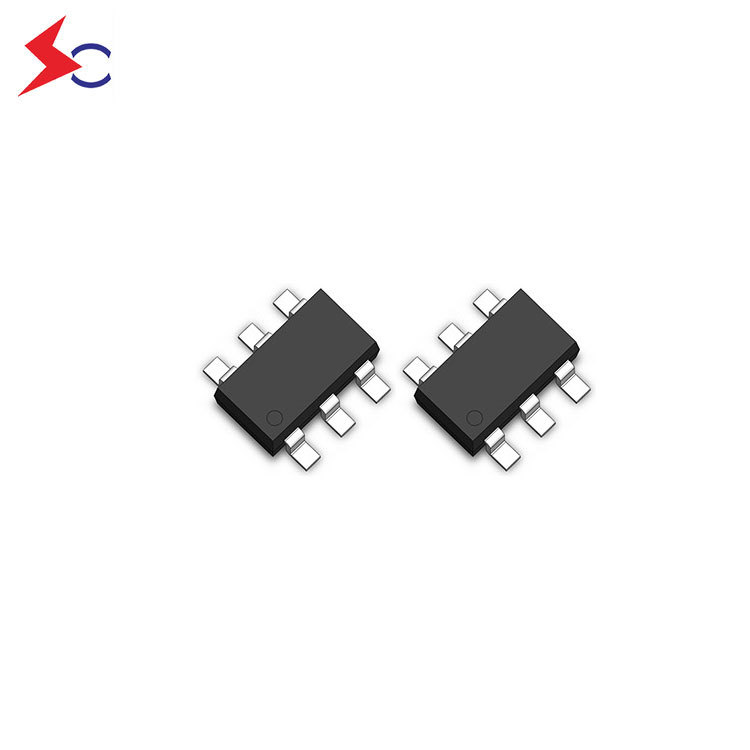

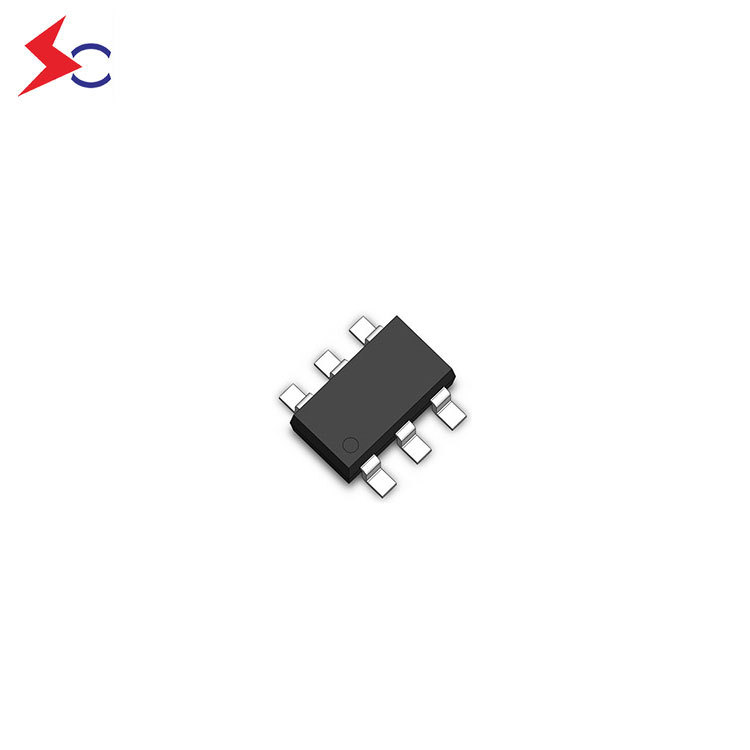

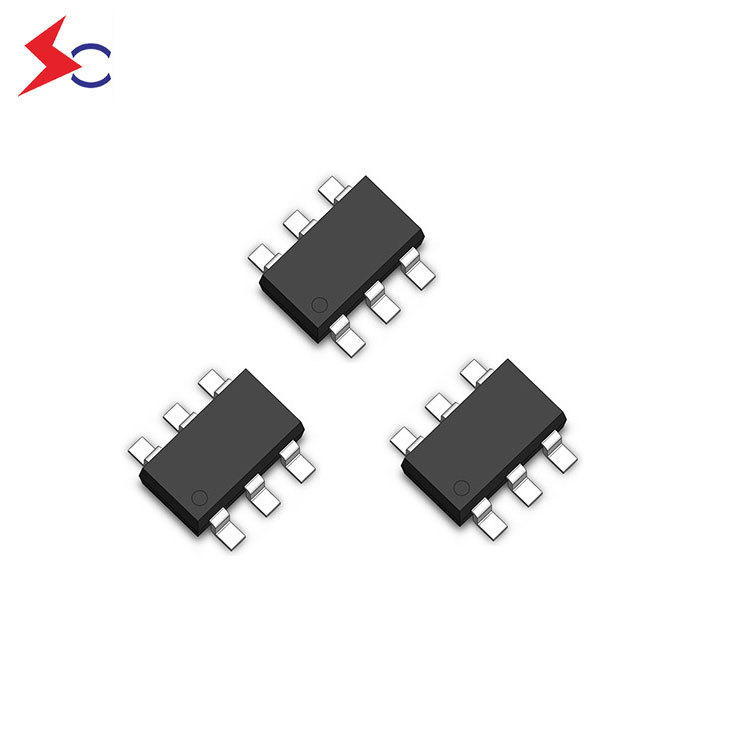

SOT23-6L Package
Flammability Rating:UL 94V-0
Packaging: Tape and Reel
