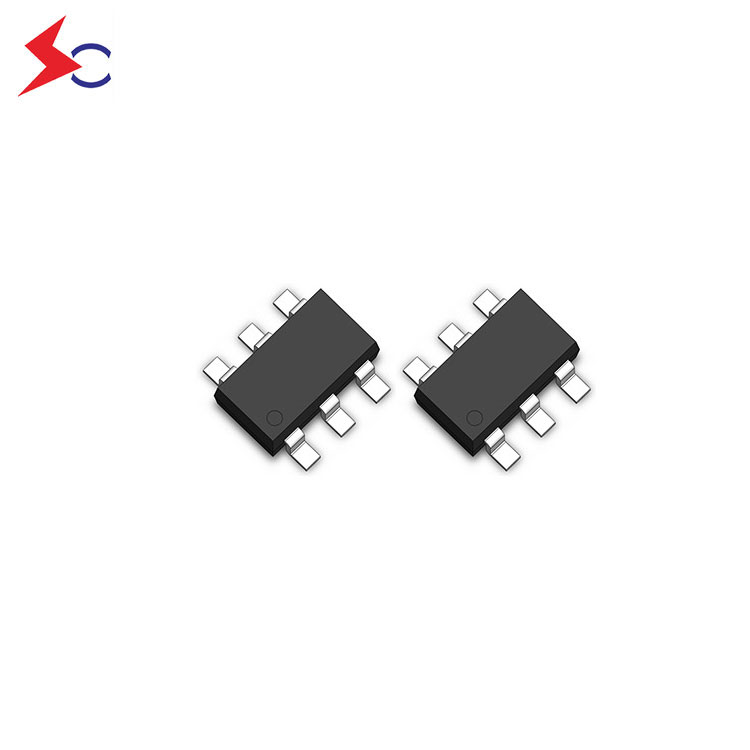

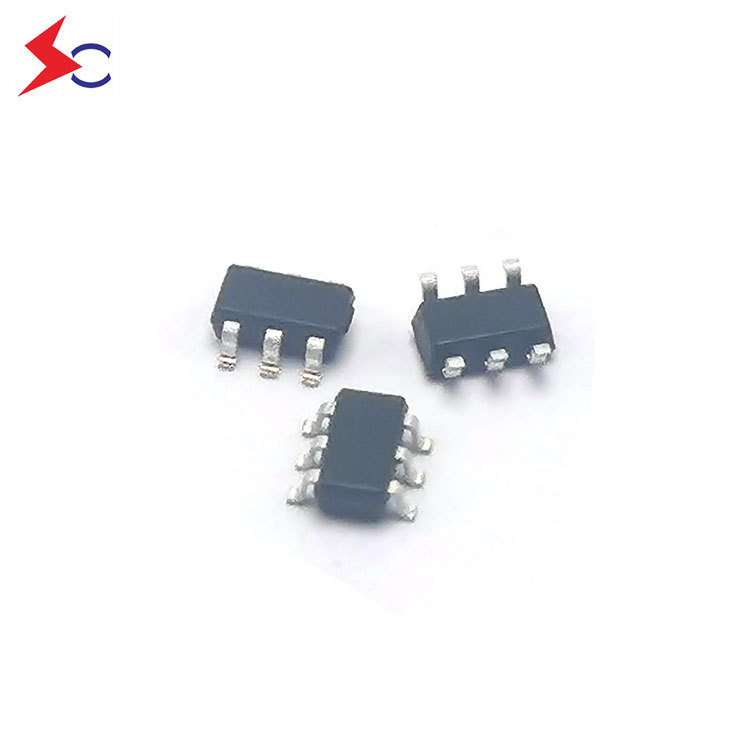

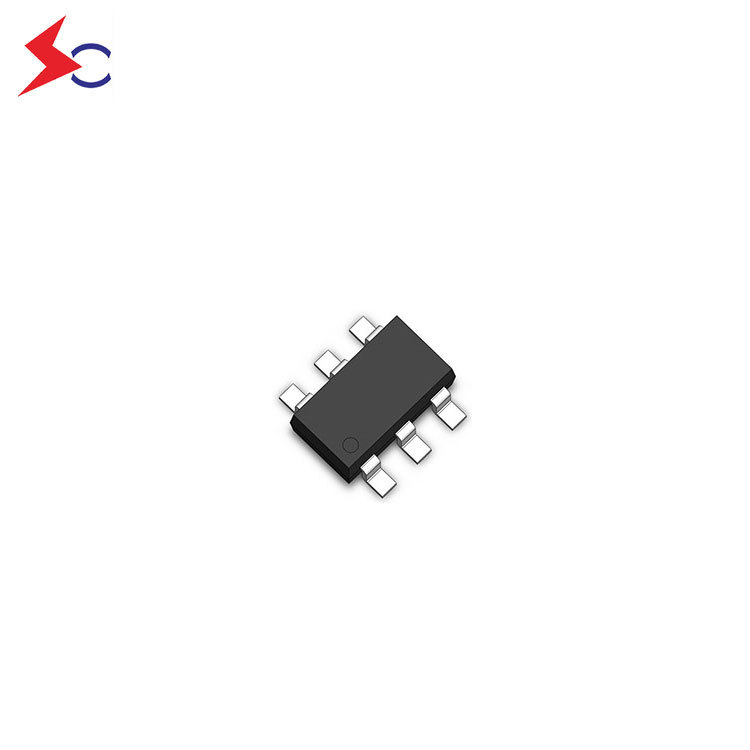

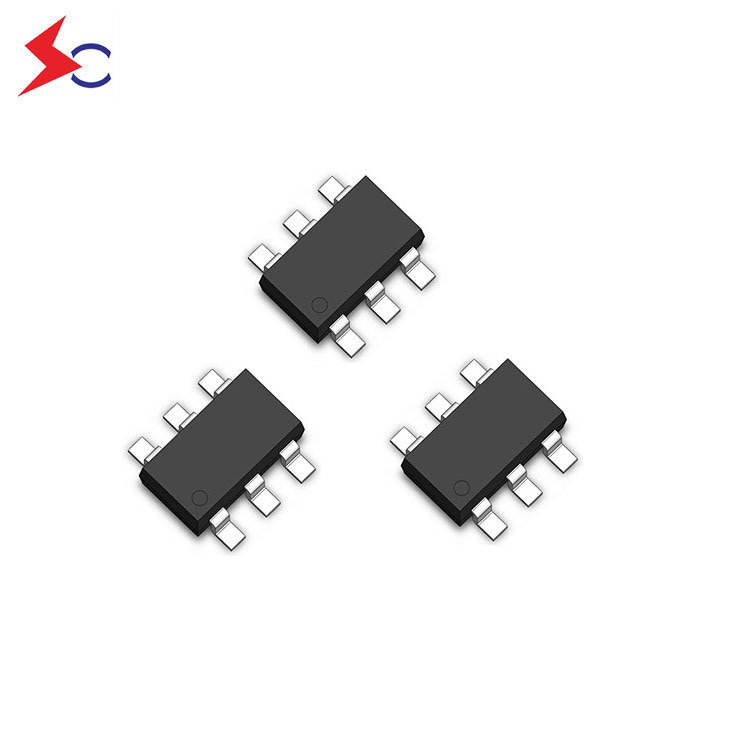

SOCAY Low Capacitance SOT23-6L Package SE05T6D12GD Transient Voltage Suppressors Array for ESD Protection
SKU: SE05T6D12GD
(0)
0 Sold
$0.04
$0.05
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05T6D12GD
Peak Reverse Working Voltage —Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：0.1
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA —VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc Typ(V)：8.0
Clamping Voltage @ Ipp—Ipp=5.5A , tp=8/20μs Vc Max(V)：11.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：0.9
Part Number：SE05T6D12GD
Peak Reverse Working Voltage —Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：0.1
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA —VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc Typ(V)：8.0
Clamping Voltage @ Ipp—Ipp=5.5A , tp=8/20μs Vc Max(V)：11.0
Junction Capacitance @ VR=0V,f=1MHz—CJ(pF)：0.9
