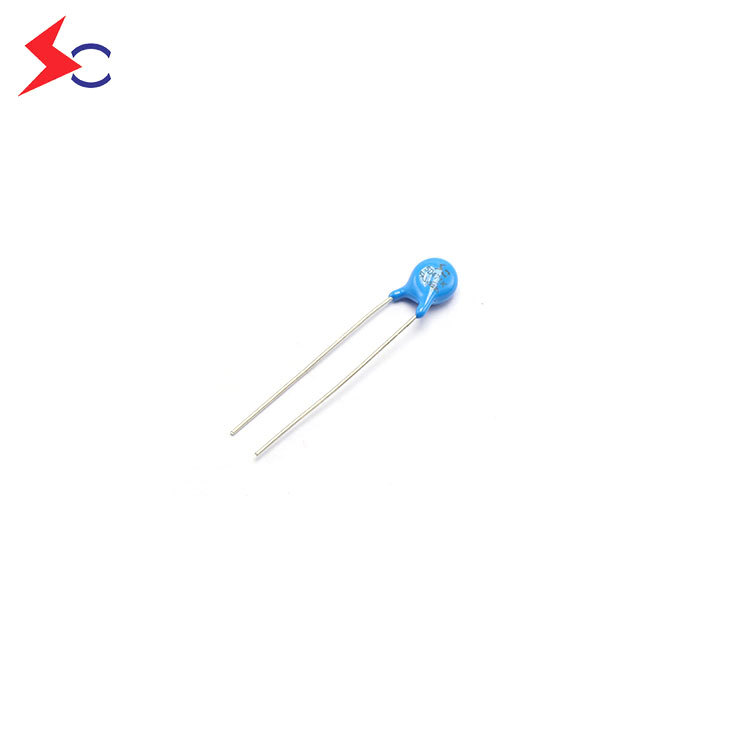

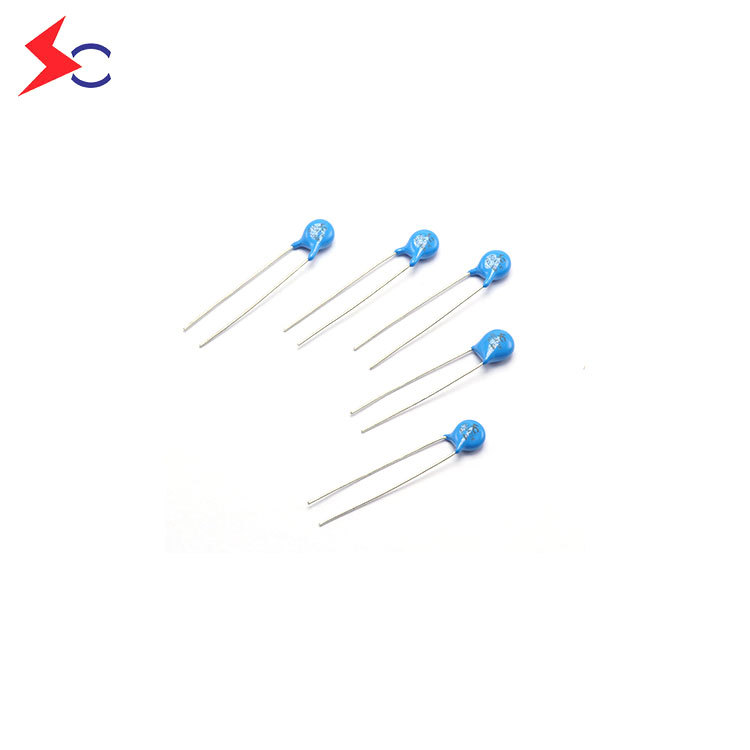

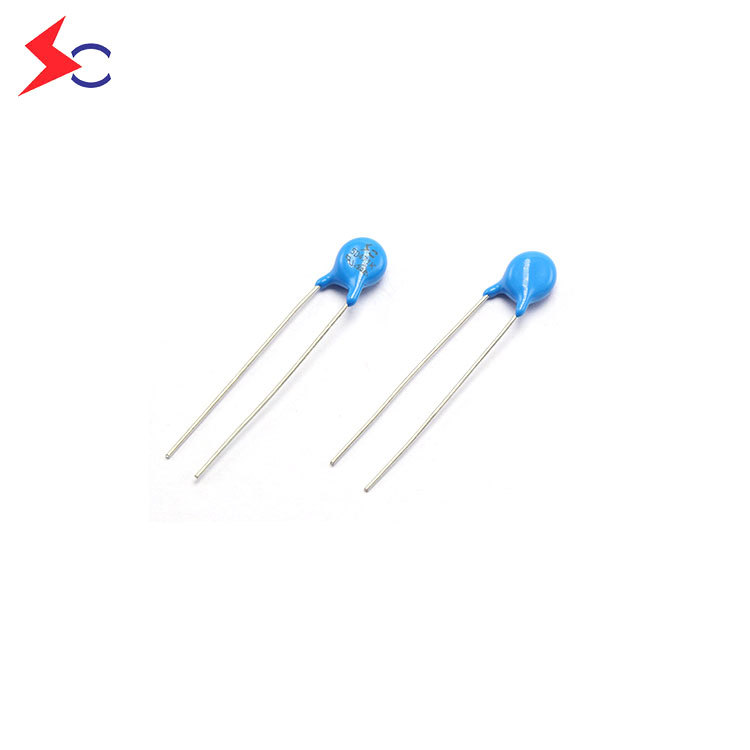

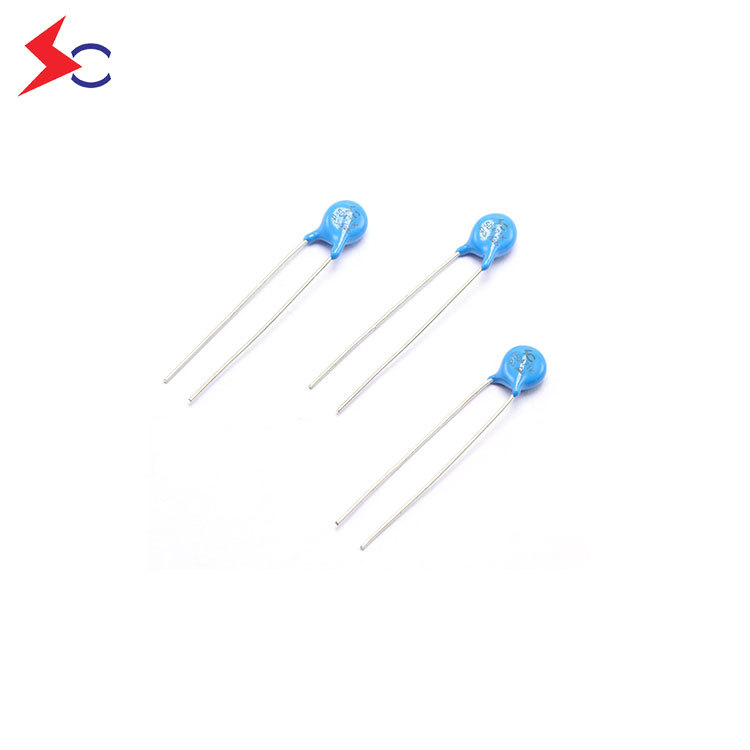

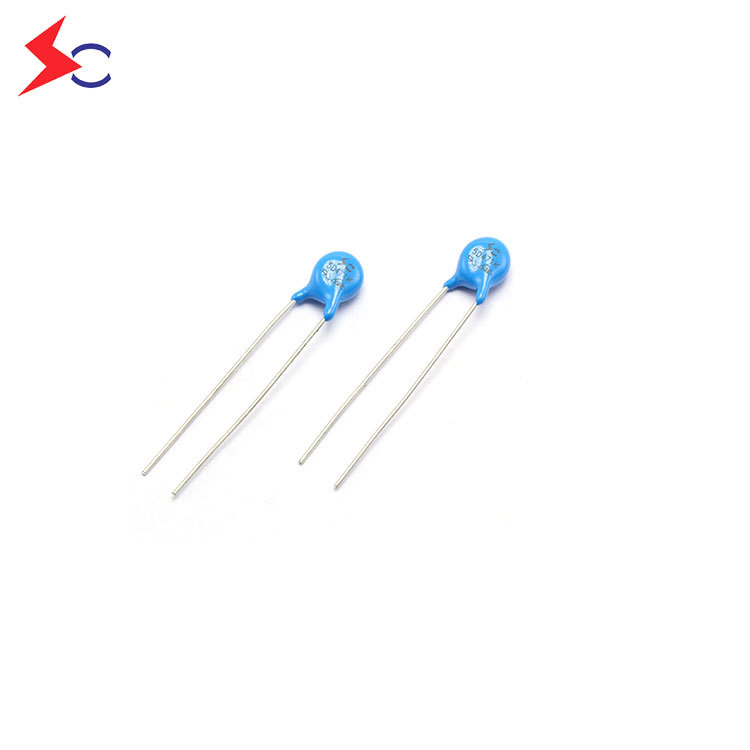

SOCAY Radial Lead Varistors 14D Series MOV 14D431KJ Voltage V1mA 387V to 473V for Surge Protection
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 14D431KJ
Maximum Allowable voltage Vac(V)：275
Varistor Voltage Vdc(V)：350
Varistor Voltage V1mA(V): 430(387~473)
Maximum Clamping Voltage Ip(A): 50
Maximum Clamping Voltage Vc(V): 710
Withstanding Surge Current I(A) (1 time): 6000
Withstanding Surge Current I(A) (2 times): 5000
Maximum Energy(10/1000μs) (J): 155
Rated Power(W): 0.6
Typical Capacitance (Reference) @1KHZ (pf): 460
Type Number: 14D431KJ
Maximum Allowable voltage Vac(V)：275
Varistor Voltage Vdc(V)：350
Varistor Voltage V1mA(V): 430(387~473)
Maximum Clamping Voltage Ip(A): 50
Maximum Clamping Voltage Vc(V): 710
Withstanding Surge Current I(A) (1 time): 6000
Withstanding Surge Current I(A) (2 times): 5000
Maximum Energy(10/1000μs) (J): 155
Rated Power(W): 0.6
Typical Capacitance (Reference) @1KHZ (pf): 460
