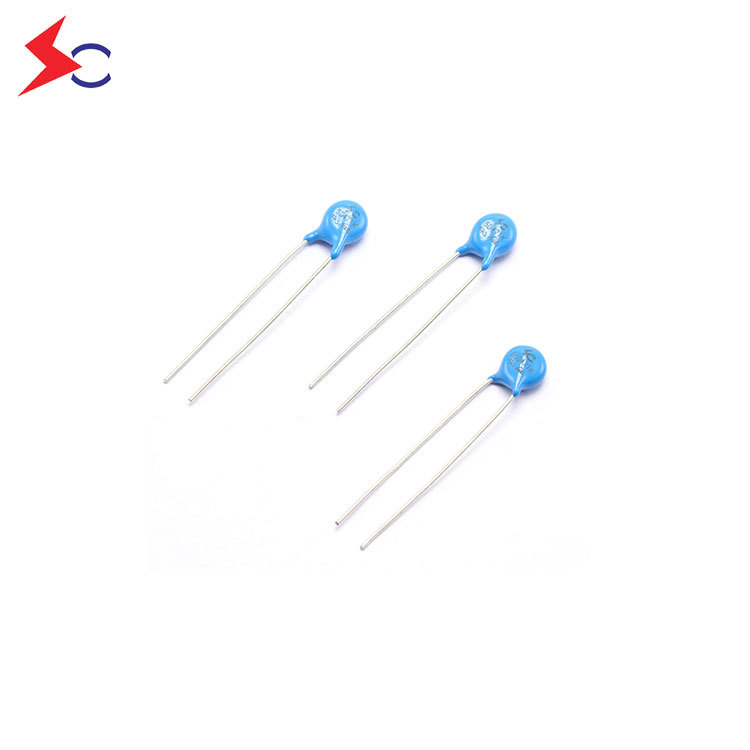

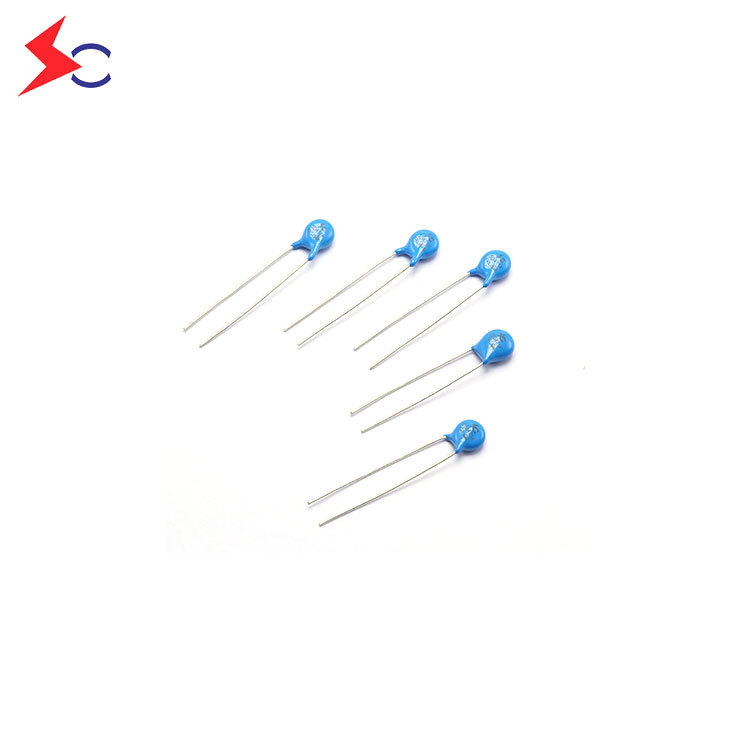

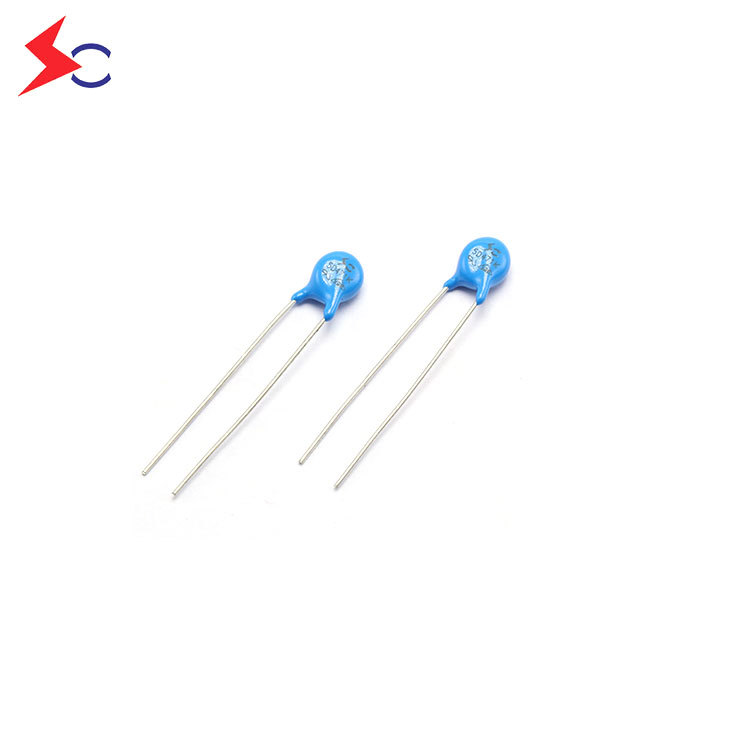

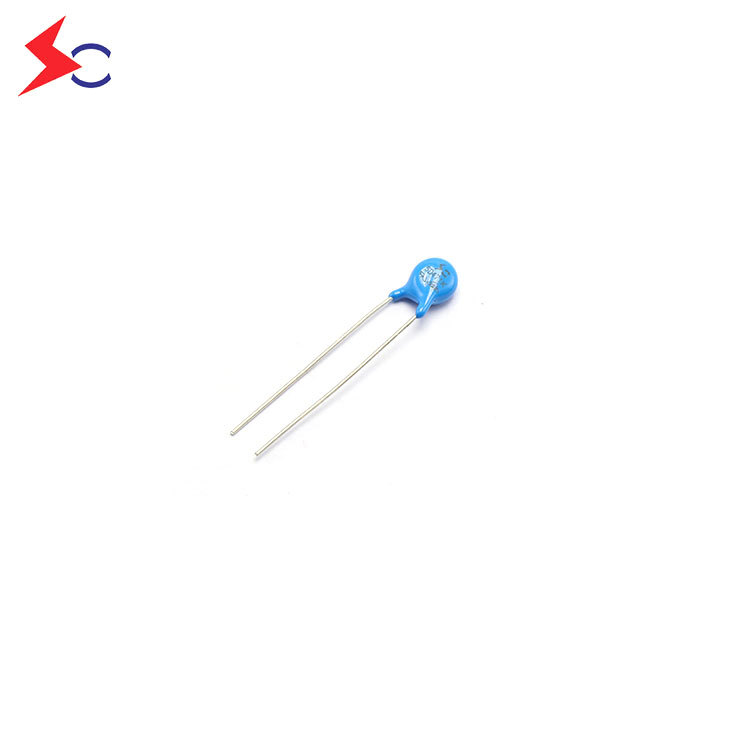

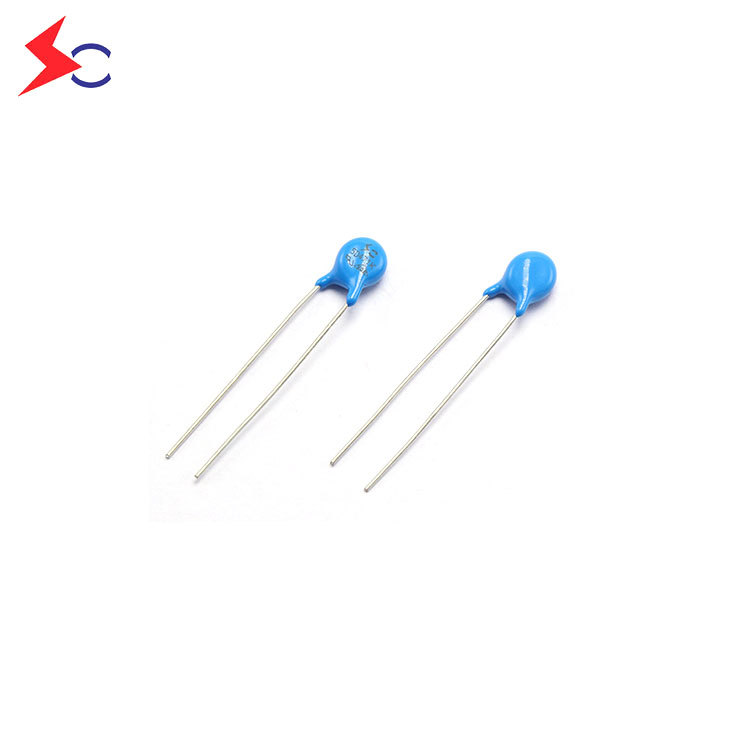

SOCAY Radial Lead Varistors 14D Series MOV 14D391K Voltage V1mA 351V to 429V for Surge Protection
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 14D391K
Maximum Allowable voltage Vac(V)：250
Varistor Voltage Vdc(V)：320
Varistor Voltage V1mA(V): 390(351~429)
Maximum Clamping Voltage Ip(A): 50
Maximum Clamping Voltage Vc(V): 650
Withstanding Surge Current I(A) (1 time): 4500
Withstanding Surge Current I(A) (2 times): 2500
Maximum Energy(10/1000μs) (J): 100.0
Rated Power(W): 0.6
Typical Capacitance (Reference) @1KHZ (pf): 510
Type Number: 14D391K
Maximum Allowable voltage Vac(V)：250
Varistor Voltage Vdc(V)：320
Varistor Voltage V1mA(V): 390(351~429)
Maximum Clamping Voltage Ip(A): 50
Maximum Clamping Voltage Vc(V): 650
Withstanding Surge Current I(A) (1 time): 4500
Withstanding Surge Current I(A) (2 times): 2500
Maximum Energy(10/1000μs) (J): 100.0
Rated Power(W): 0.6
Typical Capacitance (Reference) @1KHZ (pf): 510
