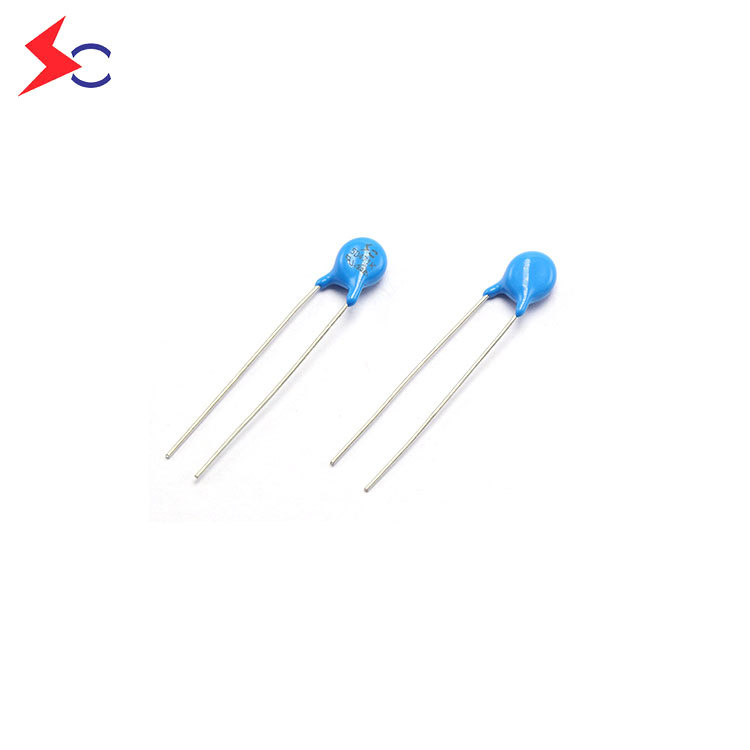

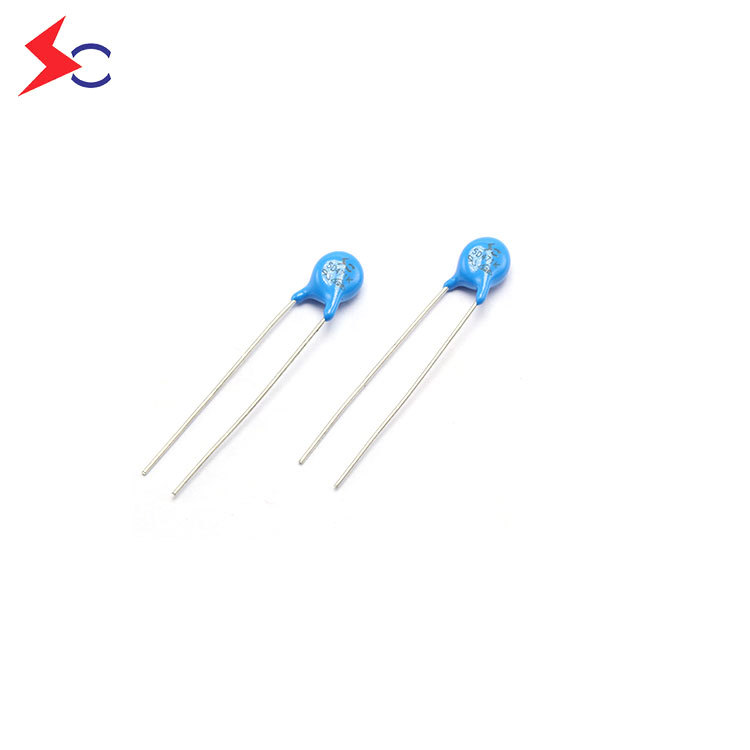

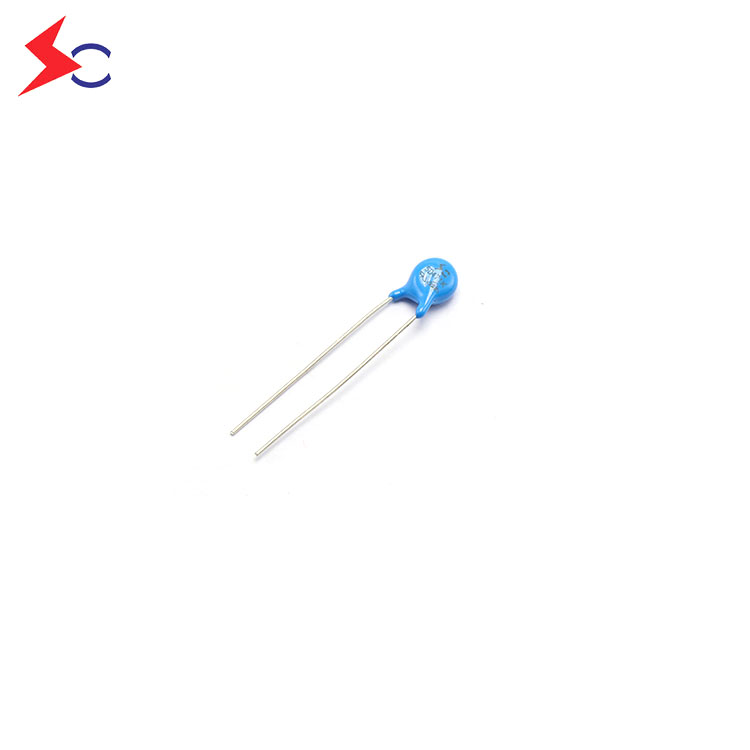

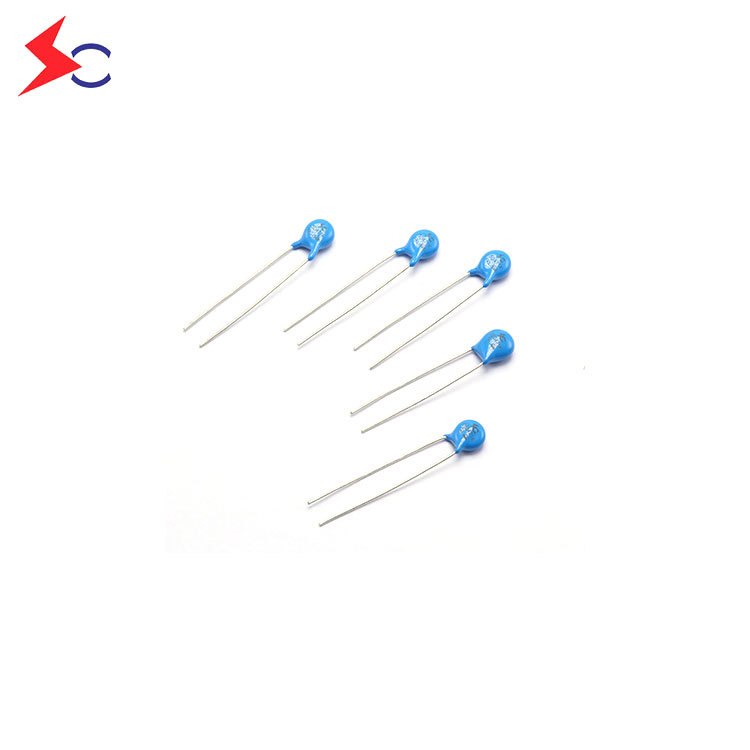

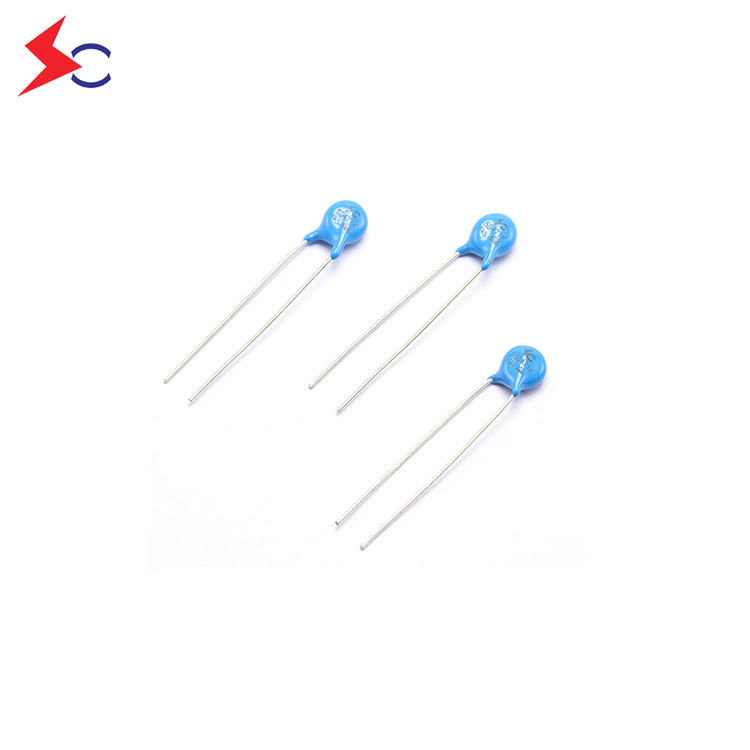

SOCAY MOV 5D101K Voltage 90V to 110V 5A 250pf Technical Datasheets for Varistor Plugins
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 05D101K
Maximum Allowable voltage Vac(V)：60
Varistor Voltage Vdc(V)：85
Varistor Voltage V0.1mA(V)：100(90~110)
Maximum Clamping Voltage Ip(A): 5
Maximum Clamping Voltage Vc(V): 177
Withstanding Surge Current I(A) (1 time): 400
Withstanding Surge Current I(A) (2 times): 200
Maximum Energy(10/1000μs) (J): 2.5
Rated Power(W): 0.1
Typical Capacitance (Reference) @1KHZ (pf): 250
Type Number: 05D101K
Maximum Allowable voltage Vac(V)：60
Varistor Voltage Vdc(V)：85
Varistor Voltage V0.1mA(V)：100(90~110)
Maximum Clamping Voltage Ip(A): 5
Maximum Clamping Voltage Vc(V): 177
Withstanding Surge Current I(A) (1 time): 400
Withstanding Surge Current I(A) (2 times): 200
Maximum Energy(10/1000μs) (J): 2.5
Rated Power(W): 0.1
Typical Capacitance (Reference) @1KHZ (pf): 250
