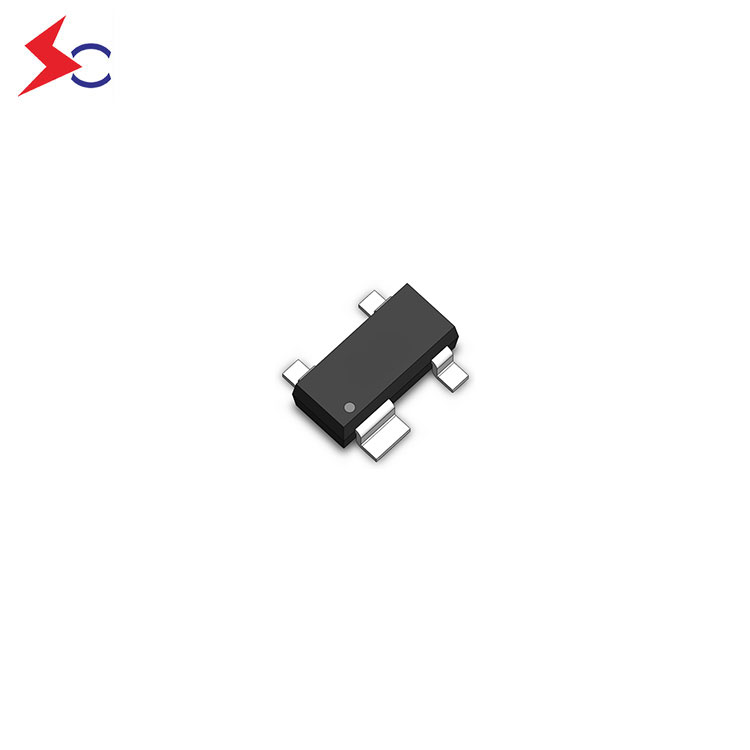

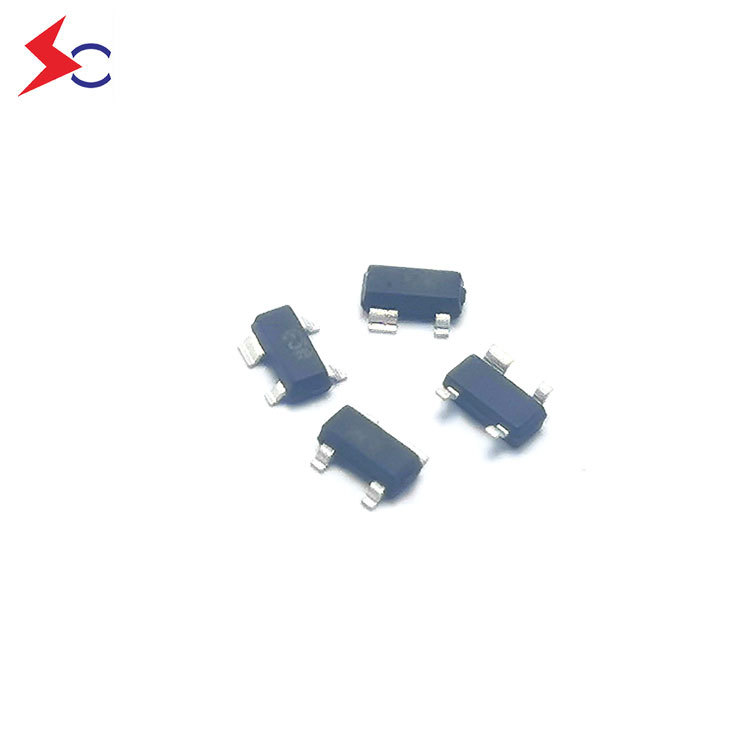

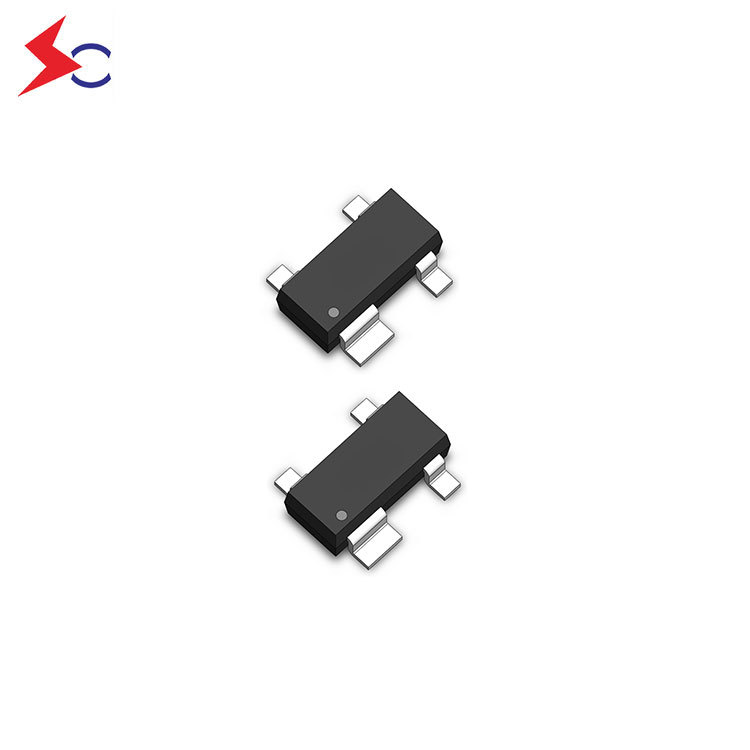

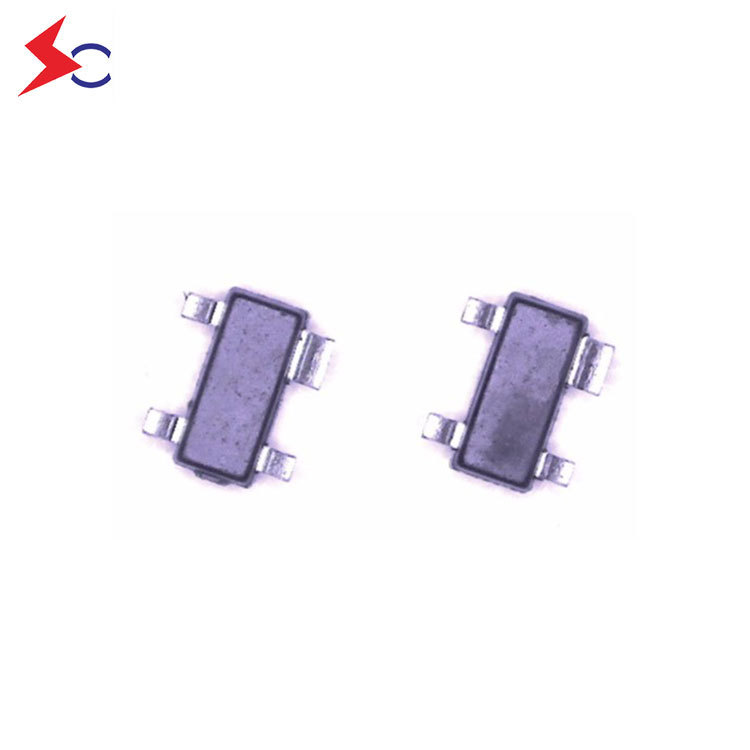

SOCAY High Quality TVS ESD Diodes SOT-143 Package SE05T1D32GZ Transient Voltage Suppressors for ESD Protection
SKU: SE05T1D32GZ
(0)
0 Sold
$0.04
$0.05
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05T1D32GZ
Peak Reverse Working Voltage —Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：1.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA —VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc Typ(V)：10.0
Clamping Voltage @ Ipp—Ipp=5A , tp=8/20μs Vc Max(V)：13.0
Junction Capacitance @ VR=0V,f=1MHz, Any I/O pin to GND—CJ Typ(pF)：0.7
Part Number：SE05T1D32GZ
Peak Reverse Working Voltage —Vrwm(V)：5.0
Reverse Leakage Current —IR Max(μA)：1.0
Breakdown Voltage @ IT—IT=1mA —VBR Min(V)：6.0
Breakdown Voltage @ IT—IT=1mA —VBR Max(V)：9.0
Clamping Voltage @ Ipp—Ipp=1A , tp=8/20μs Vc Typ(V)：10.0
Clamping Voltage @ Ipp—Ipp=5A , tp=8/20μs Vc Max(V)：13.0
Junction Capacitance @ VR=0V,f=1MHz, Any I/O pin to GND—CJ Typ(pF)：0.7
