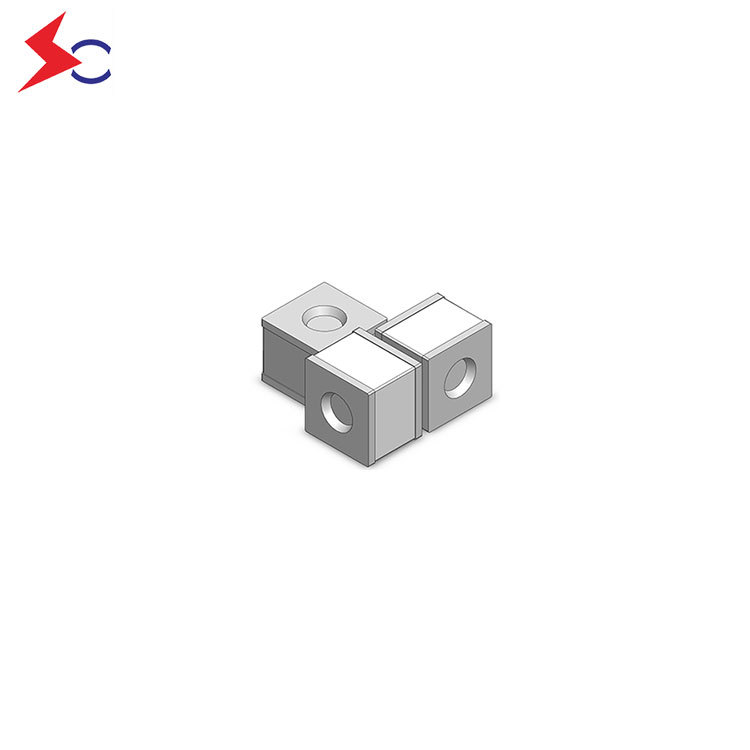

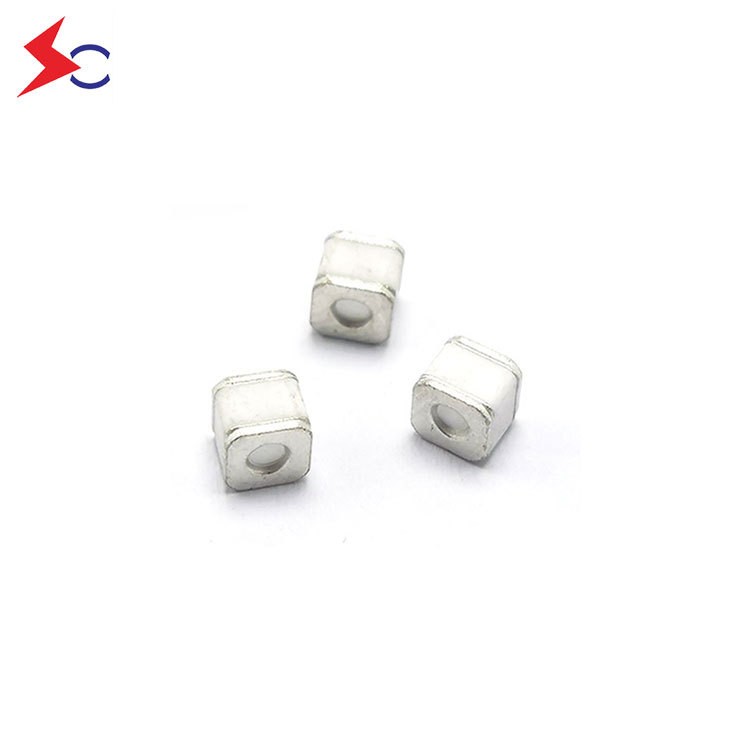

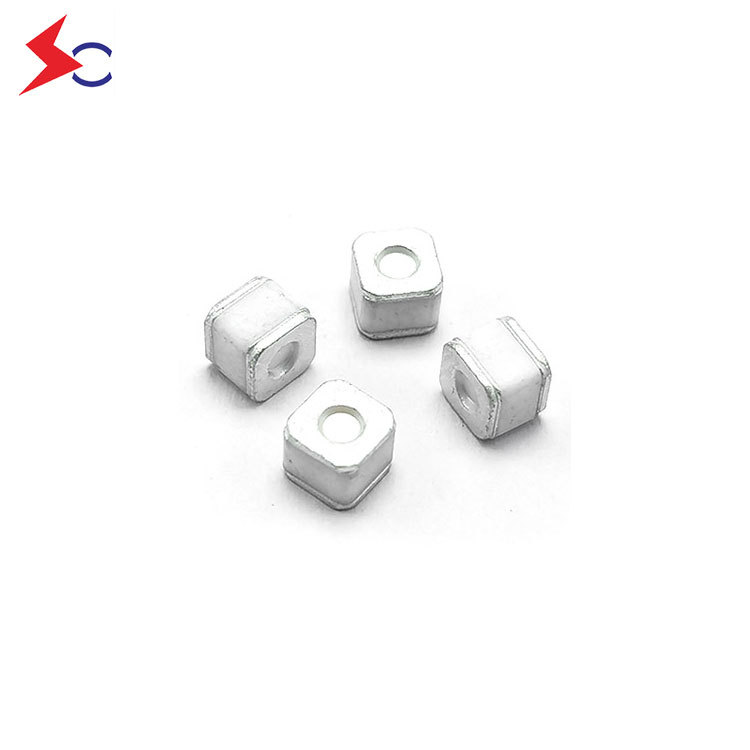

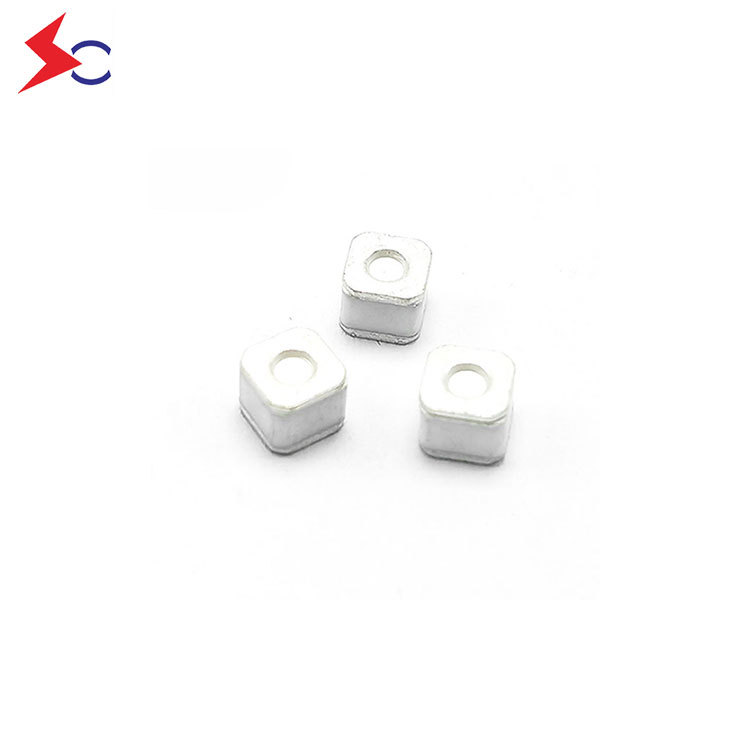

SOCAY 2 Pole SMD Gas Tube Arrester SC2E5-75LSMD 75V Surface Mount Gas Discharge Tube

Descriptions：
Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems with their high-grade but sensitive electronic circuits be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.
These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.

Features：
Non-Radioactive.
RoHS compliant.
Low insertion loss.
Excellent response to fast rising transients.
Ultra low capacitance.
5KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5.

Applications：
Communication equipment.
CATV equipment.
Test equipment.
Data lines.
Power supplies.
Telecom SLIC protection.
Broadband equipment.
ADSL equipment, including ADSL2+.
XDSL equipment.
Satellite and CATV equipment.
Consumer electronics.



Part Number: SC2E5-75LSMD
DC Spark-over Voltage @100V/S: 75V±20%
Maximum Impulse Spark-over Voltage @100V/μS: 500V
Maximum Impulse Spark-over Voltage @1KV/μS: 650V
Minimum Insulation Resistance: 1 GΩ (at 50V DC)
Maximum Capacitance @1MHz: 1.0pF
Arc Voltage @1A: 15V
Nominal Impulse Discharge Current @8/20μs ±5times: 5KA
Max Impulse Discharge Current @8/20μs 1 time: 10KA
Nominal Alternating Discharge Current @50Hz 1 Sec 10 times: 5A
Impulse Life @10/1000μs 300 times: 100A
Dimension: 5.0*5.0*4.2mm
